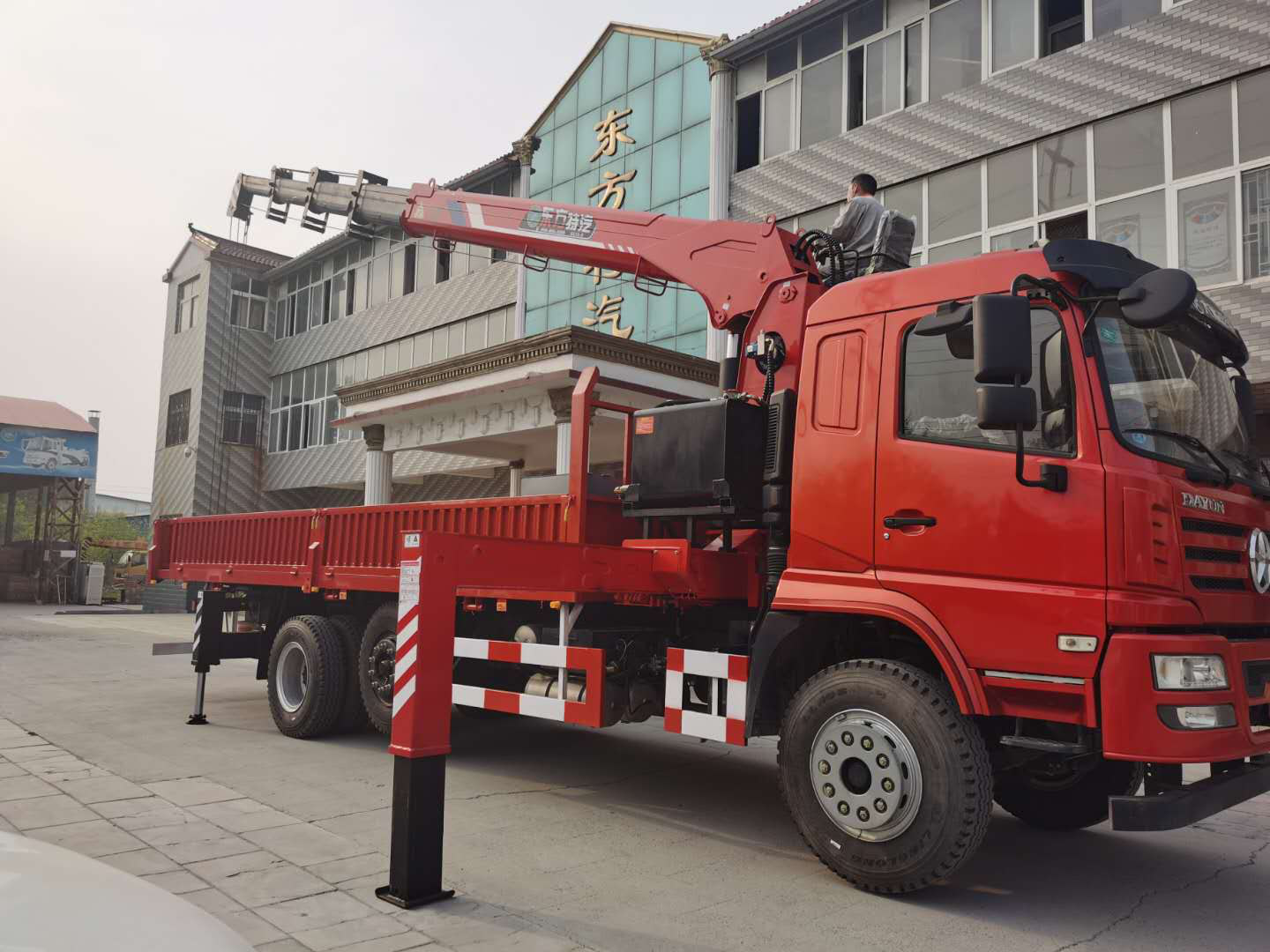

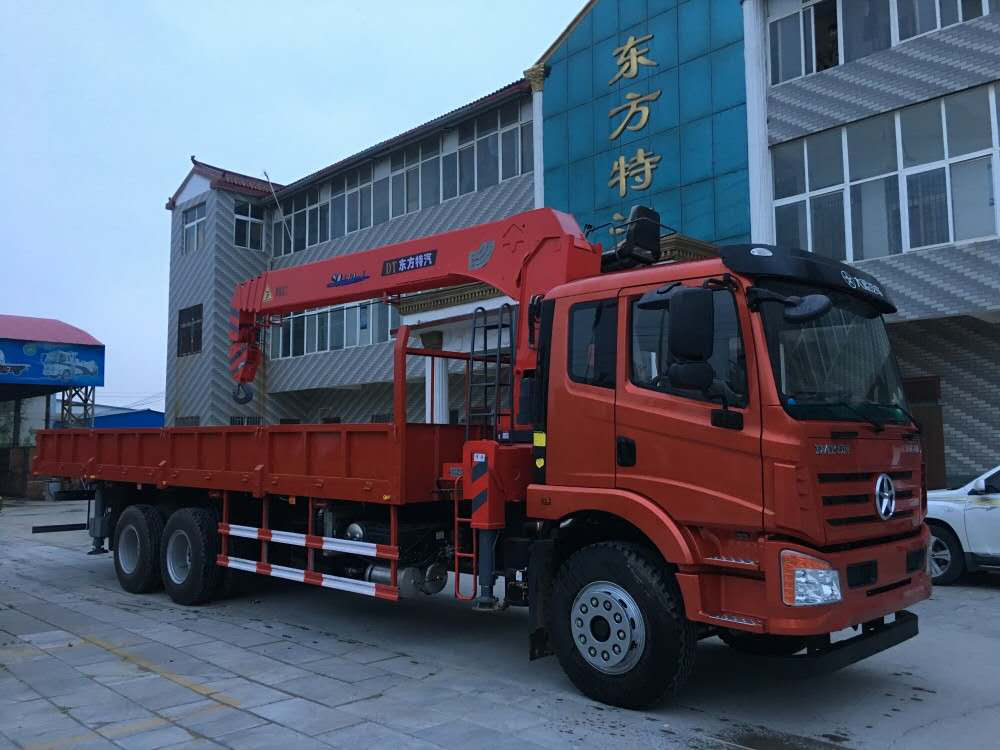

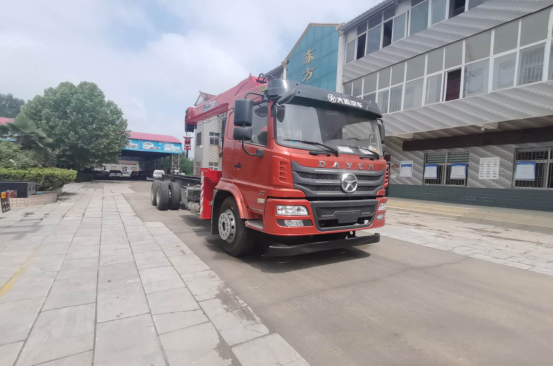

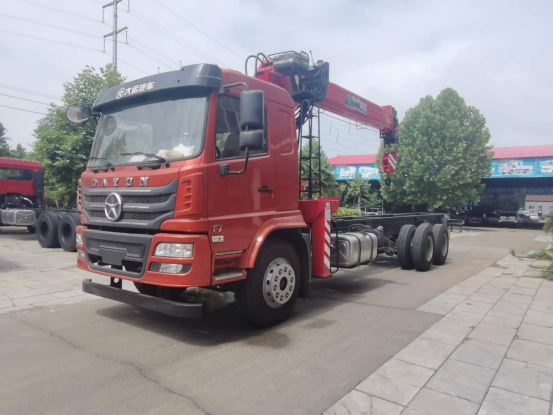

Dongfang Special Automobile Truck Crane

Dongfang Special Automobile Co., Ltd. specializes in the sale of truck-mounted crane trucks, truck-mounted trucks commonly known as truck-mounted cranes. It is a device that uses hydraulic lifting and telescopic systems to lift, rotate, and lift cargo. It is usually assembled. On trucks. It is generally composed of a truck chassis, cargo compartment, power take-off, and crane. The truck chassis can be selected from Dayun, Dongfeng, Jiefang, Auman, Steyr, etc. The crane type is divided into straight arm type and folding arm type, according to tonnage is divided into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons, etc.! Truck-mounted trucks are also called truck cranes and self-crane trucks in some places. It integrates hoisting and transportation, and is mostly used in stations, warehouses, docks, construction sites, field rescue and other places. It can be equipped with cargo boxes of different lengths and cranes of different tonnages. A water tank can also be added in the carriage to form a sprinkler truck.

Products

Product parameters

"Automotive Technical Parameters"

Product name

Lifting a truck with a car

Product model

HDD5250JSQ

Total Mass (Kg)

25000

Tank volume (m3)


Rated Load Quality (Kg)

9205,8605

Dimensions (mm)

10200, 10600, 11000, 11600, 12000x2550x3650, 3850

Quality of preparation (Kg)

15600,16200

Cargo size (mm)

6800,7200,7500,8200,8500x2400x550

Speed

90

Number of cab riders (persons) ()

3

Close corner / departure angle(°)

19/9,19/10,19/11

Front suspension / rear suspension (mm)

1410/3090,1410/2890,1410/3490,1410/3390

Shaft load (Kg)

7000/18000  (two-axis group))

Maximum speed (Km/h)

90

Upper crane

8-12 tons with optional four arms (lift height 16 m) or five arms(20 m) for rear legs as needed!

Note

 Optional cab with chassis,  , optional packing board style, , optional work seat mounting position. Optional straight arm and folding arm , straight arm crane model / crane mass (kg) / maximum lift load (kg) / preparation mass (kg) correspondence is: SQ12/4900/12000/16200; model / crane mass (kg) / maximum lift load (kg) / preparation mass (kg) correspondence is: SQ400/4000/12000/15600. Car length / wheelbase / center suspension / rear suspension correspondence (mm): 10200 s 4350 s 1350/1410/3090, 10600 s 4750 s 1350/1410/3090,11000 5350-1350/1410/2890, 11600-5350-1350/1410/3490,12000-5850-1350/1410/3390. TThe side guard and rear guard material is Q235, which is bolted to the , the rear guard section size: 50mm (thickness) x 120mm (high) ), and the height of the ground is 450mm. /b146> 1, ABS model: VIE ABS-II, manufacturer: : Zhejiang Wan'an Technology Co., Ltd.; 2, ABS system controller model 3550X-1010, manufacturer: : East Kirk norre Commercial Vehicle Brake System (Ten- ) ( Co., Ltd. Install a ride recorder with satellite positioning. Engine YC6JA240-50, YC6A270-50, YC6A290-50 fuel consumption value (L/100km) are all 35.6.

Chassis Technical Parameters

Chassis model

DYQ1251D5DA

Chassis name

Cargo car chassis

Trademark name

Big Card

Production enterprises

Chengdu Grand Transport Automobile Group Co., Ltd.

Number of axes

3

Number of tyres

10

Wheelbase (mm)

4350-1350,4750-1350,5350-1350,5850-1350

Tire specifications

11.00-20 18PR, 11.00R20 18PR

Number of steel spring pieces

9/10,10/10

Front wheel base (mm)

1900,1975

Types of fuel

Diesel

Rear wheel base (mm)

1800/1800,1865/1865

Emission based on standards

GB17691-2005  Country V., GB3847-2005

Engine model

Engine manufacturers

Displacement (ml)

Power (Kw)

YC6JA240-50

YC6A270-50

YC6A290-50

Guangxi Yuchai Machinery Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

6870

7520

7520

177

199

213
